LCD display para quadrantes Peugeot 407

64x98 pixel LCD display, with FPC, adaptable to the following dashboards:

• Peugeot 407 (models from 2004 to 2011);

• Peugeot 607 (post facelift models from 2004 to 2010);

• Need not be soldered to the board but press-fitted to a dedicated connector;

Dimensions: 48x57mm

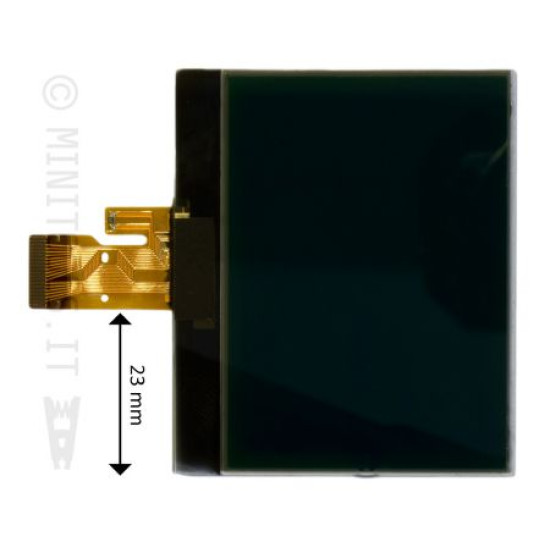

Notes: Measure the distance between the FPC connector and the lower side of the display to check the model is correct (see photo).

After replacing the display, you may need to optimise it by modifying the EEPROM parameters using a programmer.
