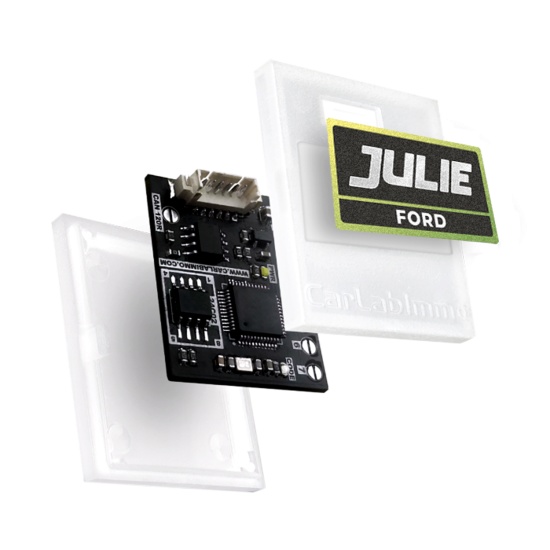

Emulator designed specifically for Ford cars.

Use:

1) Ford cars with immo module located inside the dashboard:

Supported ECUs:

Siemens VDO SID803/803A

Siemens SID206

Siemens SID202

______________________________________________________________________________________________________

Siemens SID803 / 803A

ECU Numbers:
5WS40557A-T | 6M51-12A550-AEA (Ford Focus 2.0 TDCi 136HP 2007)

Supported cars:
Ford Focus 2004-2008

____________________________________________________________________________________

Siemens SID206

 ECU Numbers:5WS40584B-T | 8V21-12A650-EB (Ford Fiesta 1.4 TDCI 70HP 2010)

Supported cars:
Ford Fiesta 1.4 TDCI 70HP 2010-2012

_____________________________________________________________________________________

ECU Numbers:
5WS40512A-T | 6M51-12A650-YA (Ford Focus 1.8 TDCI 115HP 2006)

Supported cars:
Ford Focus 1.8 TDCI 115HP 2004-2010

______________________________________________________________________________________________________

2) Original car's ECU (donor) must be equipped with immo module located in BCU
ATTENTION: Can only be used for a project, e.g. installing the engine in a boat, racing car etc.

Supported ECU:
Visteon DCU-101

Donor car:
Ford Transit

3) Original car's ECU (donor) must be equipped with ABS ID and immo module located in BCU
(Can only be used for a project, e.g. installing the engine in a boat, racing car etc.)

Donor cars:

Ford Galaxy 2007-2016
Ford Mondeo 2007-2016
Ford S-Max 2007-2016
