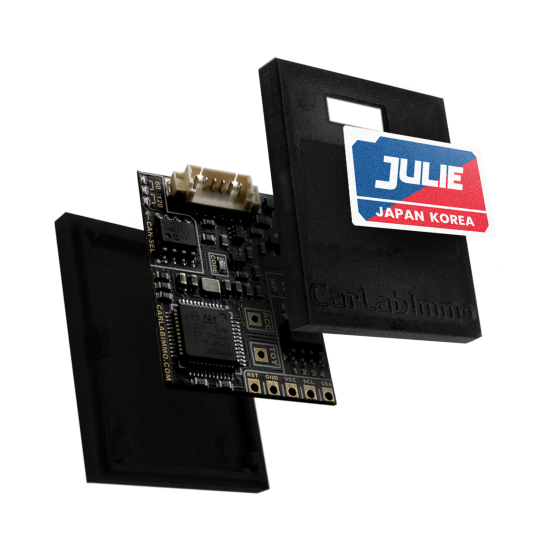

Emulador Julie JAPAN KOREA | IMMO OFF Emulator

Features

• Supported ECU Transmission: CAN, K-Line
• Built-in Memory: 24C02 (EEPROM)

Julie JAPAN KOREA Emulator is dedicated to replacing immobiliser signal in japanese / korean vehicles.

It supports the following cars and ECUs:

• Brands: Daewoo / Honda / Hyundai / KIA / Mazda / Nissan / Suzuki / Toyota

Manual and full ECU list: Open Manual

Daewoo

• Blue-socket ECU (with Motorola HC11F1 processor)
• Continental D52
• Delphi HYBRID ECU (Daewoo Lanos 1.4 OHC Gasoline | Daewoo Rezzo 2.0 DOHC Gasoline)
• Delphi R1 GTFX (Chevrolet Aveo)
• Kemsco D3 (Daewoo Matiz, Daewoo Tacuma)
• White-red-socket ECU (with Motorola HC11F1 processor)
• Siemens 4R (Chevrolet Aveo 1.2 Gasoline)
• Siemens 42R (Chevrolet Aveo)
• Siemens D32 (Chevrolet Spark 0.8 Gasoline)
• Siemens with TMS374 (Daewoo Matiz)
• Sirius D42 (Daewoo Kalos 1.2 Gasoline)

Honda

• Honda Accord (1999-2002 year)
• Honda CRV (1999-2002 year)
• Honda Civic (1999-2002 year)
• Hyundai / KIA
• Bosch / Kefico EDC15C7
• Kefico ME 7.9.0
• Kia Sportage 2.0 TD engine with ZEXEL ECU

Mazda

• Denso B33M 18 881A
• Denso B34A 18 881B
• Denso B34B 18 881A
• Denso B35B 18 881C
• Denso B35J 18 881B
• Denso B5F3 18 881C
• Denso B5F4 18 881B
• Denso B6MM 18 881A
• Denso B6MU 18 881B
• Denso BP5C 18 881A
• Denso BP5D 18 881A
• Denso BP6J 18 881C
• Denso BP6M 18 881B
• Denso BP7P 18 881C
• Denso FP87 18 881B
• Denso FP88 18 881B
• Denso FPG6 18 881B
• Denso RF3R 18 881A
• Denso RF4D 18 881
• Denso RF4F 18 881D
• Denso RF4P 18 881C
• Denso RF4S 18 881B
• Denso RF4W 18 881C
• Denso RF5W 18 881A
• Denso RF6A 18 881B
• Denso ZM39 18 881C
• Denso ZM40 18 881C
• Denso ZMWM 18 881A
• Lucas ZL13 18 881A
• Lucas ZLO5 18 881A
• Mitsubishi WLE7 18 881A
• Mitsubishi WLF2 18 881A

Nissan

• Bosch EDC15M1-5.x / EDC15V-1.5.x
• Bosch EDC16CP33
• Bosch with 24LC02 memory (1.4 gasoline) (NATS 4 / NATS 5)
• Continental SID310
• Continental SID310 (CAN NATS)
• Continental SID321
• Continental SID321 (CAN NATS)
• Hitachi MEC32-210 -> MEC32-680 (NATS 6)
• Hitachi MEC36-xxx (NATS 6)
• Hitachi MEC43-xxx (NATS 6)
• Hitachi MEC81-730 (NATS 6)
• Hitachi MEC81-730
• Hitachi MEC with 93C46 and 93C56 EEPROM memory - 1.5 | 1.8 | 2.0 gasoline (NATS 4 and 5)

Suzuki

• Denso 33920.x (93C56 EEPROM + 29F200 Flash) (Metal Cover)
• Denso 33920.x (93C56 EEPROM + 29F200 Flash) (Plastic Cover)
• Denso 33920.x (93C56 EEPROM) (Metal Cover)
• Denso 33920.x (93C56 EEPROM) (Subaru)

Attention! Emulator supports vehicles with 4C/4D key

• Hitachi 33920.x (93LC46 EEPROM)
• Hitachi 33920.x (OKI Memory)
• Hitachi 33920.x (24C04 EEPROM)
• Hitachi 33920.x (X24C01 EEPROM)

Attention! Emulator doesn't support vehicles with Opel immobilizer (TMS)

Toyota

• Bosch EDC16C10-6.2 [Immo Box 89780-12140]
• Bosch EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]
• Bosch M 7.9.41 [Computer Assy, Transponder Key 89780-02040]
• Denso 89661-02A60 [Immo Box 89780-12140]
• Denso 89661-05D30 [Computer Assy, Transponder Key 89780-05050]
• Denso 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]
• Denso 89661-12B00 [Immo Box 89780-12180]
• Denso 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

Yamaha

Motorbikes & scooters from 2004 to 2010 e.g.:

• YZF R1 / YZF R6
• FZ6 N / FZ6 S
• T-MAX
• X-MAX
• V-MAX
