Emulador Julie TOYOTA | IMMO OFF

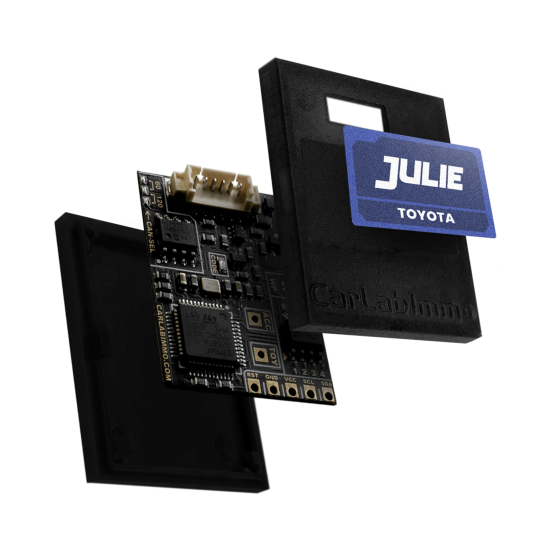

Julie TOYOTA Emulator is dedicated to replacing immobiliser signal in Toyota vehicles.

It supports the following ECUs:

Brands: Toyota

Manual and full ECU list: Open Manual

Supported ECUs:

Bosch

• Bosch EDC16C10-6.2 [Immo Box 89780-12140]
• Bosch EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]
• Bosch EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]
• Bosch M 7.9.41 [Computer Assy, Transponder Key 89780-02040]

Denso

• Denso 89661-02A60 [Immo Box 89780-12140]
• Denso 89661-05D30 [Computer Assy, Transponder Key 89780-05050]
• Denso 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]
• Denso 89661-12B00 [Immo Box 89780-12180]
• Denso 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

Bosch EDC16C10-6.2 [Immo Box 89780-12140]

Toyota Corolla 1.4 D-4D 90HP 2005-2009

ECU numbers

• 0 281 011 731 (Toyota Corolla 1.4 D-4D 90HP 2005)
• 0 281 011 733 (Toyota Corolla 1.4 D-4D 90HP 2005)
• 0 281 011 734 (Toyota Corolla 1.4 D-4D 90HP 2007)

Bosch EDC16C10-9.3 [Computer Assy, Transponder Key 89780-0D011]

Toyota Corolla 1.4 D-4D 90HP 2005-2009

Toyota Yaris II 1.4 D-4D 90HP 2006-2009

ECU numbers

• 0 281 012 517 (Toyota Yaris II 1.4 D-4D 90 2006)
• 0 281 012 518 (Toyota Yaris II 1.4 D-4D 90 2007)
• 0 281 012 322 (Toyota Yaris II 1.4 D-4D 90 2007)
• 0 281 013 413 (Toyota Corolla 1.4 D-4D 90HP 2009)

Bosch EDC17CP07 [Computer Assy, Transponder Key 89780-0D011]

Toyota Auris 1.4 D-4D 90HP 2006-2013

Toyota Yaris II 1.4 D-4D 90HP 2009-2011

ECU numbers

• 0 281 015 361 (Toyota Auris 1.4 D-4D 90HP 2010)
• 0 281 015 358 (Toyota Yaris II 1.4 D-4D 90HP 2009)
• 0 281 015 385 (Toyota Yaris II 1.4 D-4D 90HP 2009)
• 0 281 015 695 (Toyota Yaris II 1.4 D-4D 90HP 2009)

Bosch EDC17CP37 [Computer Assy, Transponder Key 89780-0D011]

Toyota Auris 1.4 D-4D 90HP 2006-2013

Toyota Corolla 1.4 D-4D 90HP 2006-2013

Toyota Etios 1.4 D-4D 90HP 2010-2017

Toyota Urban Cruiser 1.4 D-4D 90HP 2008-2014

Toyota Yaris II 1.4 D-4D 90HP 2009-2011

Toyota Yaris III 1.4 D-4D 90HP 2010-2017

ECU numbers

• 0 281 016 911 (Toyota Auris 1.4 D-4D 90HP 2010)
• 0 281 017 097 (Toyota Auris 1.4 D-4D 90HP 2010)
• 0 281 017 134 (Toyota Yaris II 1.4 D-4D 90HP 2011)
• 0 281 017 135 (Toyota Yaris II 1.4 D-4D 90HP 2010)
• 0 281 017 226 (Toyota Corolla 1.4 D-4D 90HP 2009)
• 0 281 017 290 (Toyota Urban Cruiser 1.4 D-4D 90HP 2011)
• 0 281 017 292 (Toyota Urban Cruiser 1.4 D-4D 90HP 2009)
• 0 281 017 500 (Toyota Etios 1.4 D-4D 90HP 2013)
• 0 281 017 820 (Toyota Yaris II 1.4 D-4D 90HP 2011)
• 0 281 019 178 (Toyota Auris 1.4 D-4D 90HP 2021)
• 0 281 019 993 (Toyota Yaris III 1.4 D-4D 90 HP2013)
• 0 281 019 995 (Toyota Yaris III 1.4 D-4D 90HP 2014)

Bosch M 7.9.41 [Computer Assy, Transponder Key 89780-02040]

Toyota Auris 1.4 97HP 2006-2012

ECU numbers

• 0 261 201 209 / 89661-02E90 (Toyota Auris 1.4 97HP 2008)

Denso 89661-02A60 [Immo Box 89780-12140]

Toyota Corolla 2.0 D-4D 116HP 2003-2007

ECU numbers

• 89661-02A60 (toyota Corolla 2.0 D-4D 116HP 2006)

Denso 89661-05D30 [Computer Assy, Transponder Key 89780-05050]

Toyota Avensis T27 2.0 D-4D 126HP 2009-2011

ECU numbers

• 89661-05D30 toyota Avensis T27 2.0 D-4D 126HP 2009

Denso 89661-0D310 [Computer Assy, Transponder Key 89780-0D011]

Toyota Yaris II 1.3 VVT-i 87HP 2005-2008

ECU numbers

• 89661-0D310 / MB 275100 2493 (Toyota Yaris II 1.3 VVT-i 87HP 2005

Denso 89661-12B00 [Immo Box 89780-12180]

Toyota Auris 2.0 D-4D 126HP 2006-2012)

ECU numbers

• 89661-12B00 (Toyota Auris 2.0 D-4D 126HP 2007

Denso 89661-52F30 [Comp. Assy, Transponder Key 89784-52011]

Toyota Yaris 1.8 133HP 2007-2009

ECU numbers

• 89661-52F30 (Toyota Yaris II 1.8 133HP 2008)
